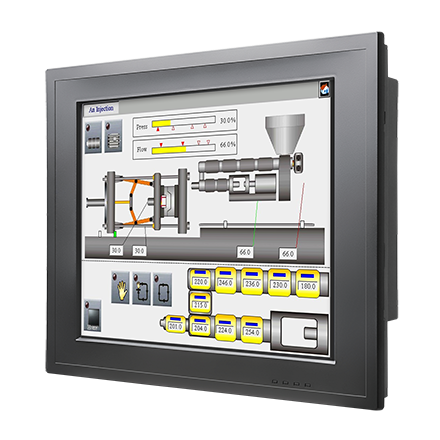

PPC-8170-RI3AE17寸工业平板电脑

产品分类： 17寸工业平板电脑

产品简介：

PPC-8170-RI3AE17寸工业平板电脑，下面南京研维信息技术有限公司向大家详细介绍一下PPC-8170-RI3AE

订购热线：025-86113667/86136252

产品详情

PPC-8170-RI3AE17寸工业平板电脑具体介绍：

17寸工业平板电脑PPC-8170-RI3AE特点：

17" TFT LED 面板，分辨率支持1280x1024
支持Intel 或AMD平台，兼容mini-iTX 母板
支持1个PCIe x8或PCIe x16扩展插槽
可选4个附加COM扩展端口
支持AC 100~240V输入或DC 12~30V输入
支持iManager，SUSIAccess 和嵌入式软件API

17寸工业平板电脑PPC-8170-RI3AE具体配置：

Processor	CPU	3rd Gen. Intel® Core™ i3	3rd Gen. Intel® Core™ i5
Processor	Chipset	Intel H61	Intel H61
Memory	Memory	2 x 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM	2 x 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM
System	Storage	1 x 2.5" SATA bay	1 x 2.5" SATA bay
Processor System	Network (LAN)	2 x Gigabit Gigabit Ethernet connectors (RTL8111E)	2 x Gigabit Gigabit Ethernet connectors (RTL8111E)
Processor System	FAN	1 x 12V 80 x 80 x 15 mm	1 x 12V 80 x 80 x 15 mm
Physical Characteristics	Dimensions	442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")	442.0 x 362.0 x 113.5 (mm) (17.4" x 14.25" x 4.47")
Physical Characteristics	Weight	9.2 Kg	9.2 Kg
OS Support	OS Support	Win XP Pro/ Win 7 32 & 64 bit	Win XP Pro/ Win 7 32 & 64 bit
Power Supply	Output Rating	180 W	180 W
	Input Voltage	100 ~ 240 VAC	100 ~ 240 VAC
	Power Consumption	71W (Burn-in test 7.0 in Windows 7 32 bit)	71W (Burn-in test 7.0 in Windows 7 32 bit)
LCD Display	Display Type	17" TFT LED Panel	17" TFT LED Panel
	Max. Resolution	1280 x 1024	1280 x 1024
	Max. Colors	16.7M	16.7M
	Dot Size (mm)	0.264 x 0.264	0.264 x 0.264
	Viewing Angle (H/V°)	80 (left), 80 (right), 60 (up), 80 (down)	80 (left), 80 (right), 60 (up), 80 (down)
	Luminance (cd/m2)	350	350
	Contrast Ratio	800:1	800:1
	Backlight Lifetime	50, 000 hrs	50, 000 hrs
Touchscreen	Touch Type	Analog Resistive 5-wire	Analog Resistive 5-wire
	Resolution	2048 x 2048	2048 x 2048
	Light Transmission	81% +/- 3%	81% +/- 3%
	Controller	USB interface	USB interface
	Software Driver Support	Windows 7, XP, CE	Windows 7, XP, CE
	Durability (Touches)	36 million	36 million
Environment	Operating Temperature	0 ~ 50°C (32 ~ 122°F)	0 ~ 50°C (32 ~ 122°F)
	Storage Temperature	-20 ~ 60°C (-4 ~ 140°F)	-20 ~ 60°C (-4 ~ 140°F)
	Relative Humidity	10 ~ 95% @ 40° C (non-condensing)	10 ~ 95% @ 40° C (non-condensing)
	Shock	Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27	Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
	Vibration	Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64	Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
	EMC	CE, BSMI, FCC Class A	CE, BSMI, FCC Class A
	Safety	CB, CCC, BSMI, UL	CB, CCC, BSMI, UL
	Front Panel Protection	IP65 Compliant	IP65 Compliant
